Transistor/NEWS

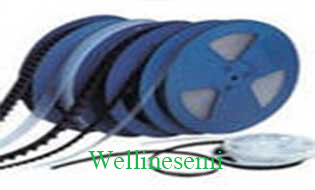

Chip Transistor
Product Note：
| Type | Marking | Pin Type | Ft | VCEO | Ic | Hfe |
| 9011 | 1T | NPN | 150MHz | 18V | 100mA | 28~132 |
| 9012 | 2T | PNP | 150MHz | 25V | 500mA | 64~144 |
| 9013 | J3 | NPN | ||||
| 9014 | J6 | NPN | 150Hz | 18V | 100mA | 60~140 |
| 9015 | M6 | NPN | ||||
| 9016 | Y6 | NPN | 500Hz | 20V | 25mA | 28~97 |
| 9018 | J8 | NPN | 700mHz | 12V | 100mA | 28~72 |
| SS8050 | J3Y | NPN | 100mHz | 25V | 1.5A | 45~300 |
| SS8550 | 2TY | PNP | ||||
| S8050 | Y1 | NPN | 100mHz | 25V | 1A | 85~300 |
| S8550 | Y2 | PNP | ||||
| 2SA1015 | BA | PNP | ||||
| 2SC1815 | HF | NPN | 80mHz | 50V | 150mA | 70~700 |
| 2SC945 | CR | NPN | 250mHz | 50V | 100mA | 200~600 |
| 2SA733 | CS | |||||
| MMBT3904 | 1AM | NPN | 300mHz | 60V | 100mA | 200~300 |
| MMBT3906 | 2a | PNP | ||||
| MMBT2222 | 1P | NPN | 250mHz | 60V | 600mA | |
| MMBT5401 | 2L | PNP | 250mHz | 150V | 500mA | 40~200 |
| MMBT5551 | G1 | NPN | ||||
| MMBTA42 | 1D | NPN | 50mHz | 300V | 100mA | |
| MMBTA92 | 2D | PNP | ||||
| BC807-16 | 5A | PNP | ||||
| BC807-25 | 5B | PNP | 80mHz | 45V | 500mA | |
| BC807-40 | 5C | PNP | 80mHz | 45V | 500mA | |
| BC817-16 | 6A | NPN | ||||
| BC817-25 | 6B | NPN | ||||
| BC817-40 | 6C | NPN | ||||
| BC846A | 1A | NPN | 250mHz | 65V | 100mA | |
| BC846B | 1B | NPN | ||||
| BC847A | 1E | NPN | 45V | |||
| BC847B | 1F | |||||
| BC847C | 1G | NPN | ||||
| BC848A | 1J | NPN | 30V | |||
| BC848B | 1K | |||||
| BC848C | 1L | |||||
| BC856A | 3A | |||||
| BC856B | 3B | |||||
| BC857A | 3E | |||||
| BC857B | 3F | |||||
| BC858A | 3J | |||||
| BC858B | 3K | |||||
| BC858C | 3L | |||||
| 2SC3356 | R23 | NPN | 70GHz | 20V | 100mA | 50~300 |
